تفاصيل المنتج:
|
| نموذج: | 3 بوصة | نسبة والعتاد: | 31: 1 |
|---|---|---|---|
| كفاءة: | 40٪ | نوع: | أفقي |
| طلب: | طاقة شمسية | خدمة صانعي القطع الاصلية: | متوفرة |
| مكان المنشأ: | تشانغتشو ، الصين | سائق: | محرك 24vdc |
| إبراز: | solar tracker drive, solar slew drive,solar slew drive |
||

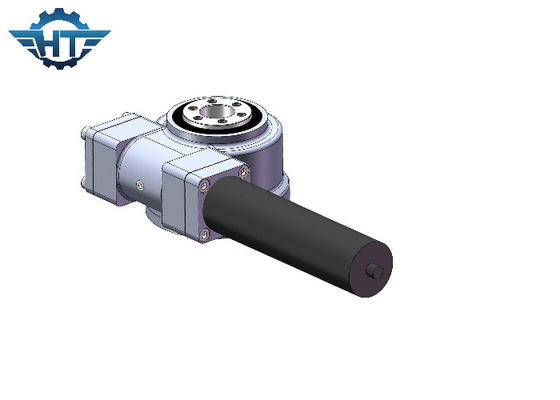

Tracking Sun Small Worm Gear Rotary Drive With High IP Grade For Solar Panel
Description
Slewing drive bearings are usually found in application such as: wind turbines, heavy load transporters, solar trackers, harbor cranes, hydraulic equipment, crane steering mechanisms, automation systems, heavy load manipulators, yaw and pitch control tables. The small slewing drive have the advantages of low weight, medium torque, easy to installation for differerent kind of small applications in solar energy, wind energy and construction machinery.
There are many types of slew drives, which can be selected taking into account the following factors.
1. Load capacity, direction and properties
2. Allowed speed
3. Rigidity
4. Tuning performance and installation error
5. Slew drive installation and disassembly
Parameters of SE Series
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque (N.m) | Holding Torque (N.m) | Axial Load (kN) | Radial Load (kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
| 1” | 32:1 | 400 | 1000 | 1800 | 22 | 12 | 40% | ≤0.1 | Yes | 6 |
| 3” | 31:1 | 600 | 1500 | 3000 | 30 | 16 | 40% | ≤0.1 | Yes | 8 |
| 5” | 37:1 | 800 | 6000 | 9200 | 68 | 27 | 40% | ≤0.1 | Yes | 12 |
| 7” | 57:1 | 2000 | 13500 | 13200 | 132 | 58 | 40% | ≤0.1 | Yes | 21 |
| 9” | 61:1 | 4400 | 45000 | 30800 | 340 | 130 | 40% | ≤0.1 | Yes | 49 |
| 12” | 78:1 | 5800 | 54400 | 40560 | 480 | 190 | 40% | ≤0.1 | Yes | 61 |
| 14” | 85:1 | 6550 | 68000 | 54200 | 680 | 230 | 40% | ≤0.1 | Yes | 63 |
| 17” | 102:1 | 9400 | 135600 | 65040 | 980 | 390 | 40% | ≤0.1 | Yes | 105 |
| 21” | 125:1 | 16000 | 203400 | 81000 | 1600 | 640 | 40% | ≤0.1 | Yes | 149 |
| 25” | 150:1 | 21000 | 271160 | 89000 | 2400 | 950 | 40% | ≤0.1 | Yes | 204 |
